Description
A common posterior distribution, based on data from Rubin (1981) used to to illustrate hierarchical modelling Gelman et al. (2013). It is also used to benchmark MCMC methods, due to a mild "funnel-type" behaviour. The terminology 'centered' refers to the original parameterization, to contrast with a reparameterization which is less challenging and hence less interesting in an MCMC benchmarking context.
Pair plot
Diagonal entries show estimates of the marginal densities as well as the (0.16, 0.5, 0.84) quantiles (dotted lines). Off-diagonal entries show estimates of the pairwise densities.
Movie linked below (🍿) superimposes 100 iterations of MCMC.
🔍 Full page ⏐🍿 Movie ⏐🔗 Info Trace plots
🔍 Full page Moments
| parameters | mean | std | mcse | ess_bulk | ess_tail | rhat | ess_per_sec |
|---|---|---|---|---|---|---|---|
| theta.1 | 6.14257 | 5.49435 | 0.57423 | 93.5761 | 108.262 | 1.00284 | missing |
| theta.2 | 4.40158 | 4.65966 | 0.385572 | 144.896 | 217.735 | 1.00161 | missing |
| theta.3 | 4.19801 | 4.50983 | 0.357437 | 161.878 | 251.613 | 1.00629 | missing |
| theta.4 | 4.24522 | 4.7417 | 0.318163 | 238.109 | 292.637 | 1.01568 | missing |
| theta.5 | 3.45192 | 4.34202 | 0.37932 | 136.137 | 193.494 | 1.00406 | missing |
| theta.6 | 3.63005 | 4.99839 | 0.436853 | 135.856 | 204.167 | 1.01694 | missing |
| theta.7 | 5.63475 | 4.4863 | 0.367281 | 152.358 | 154.387 | 1.00291 | missing |
| theta.8 | 5.05198 | 4.58843 | 0.463326 | 103.687 | 160.828 | 1.02535 | missing |
| mu | 4.10329 | 3.20911 | 0.324738 | 100.381 | 93.0589 | 1.00599 | missing |
| tau | 3.361 | 3.21764 | 0.313625 | 50.7214 | 35.825 | 1.00063 | missing |
Cumulative traces
For each iteration $i$, shows the running average up to $i$, $\frac{1}{i} \sum_{n = 1}^{i} x_n$.

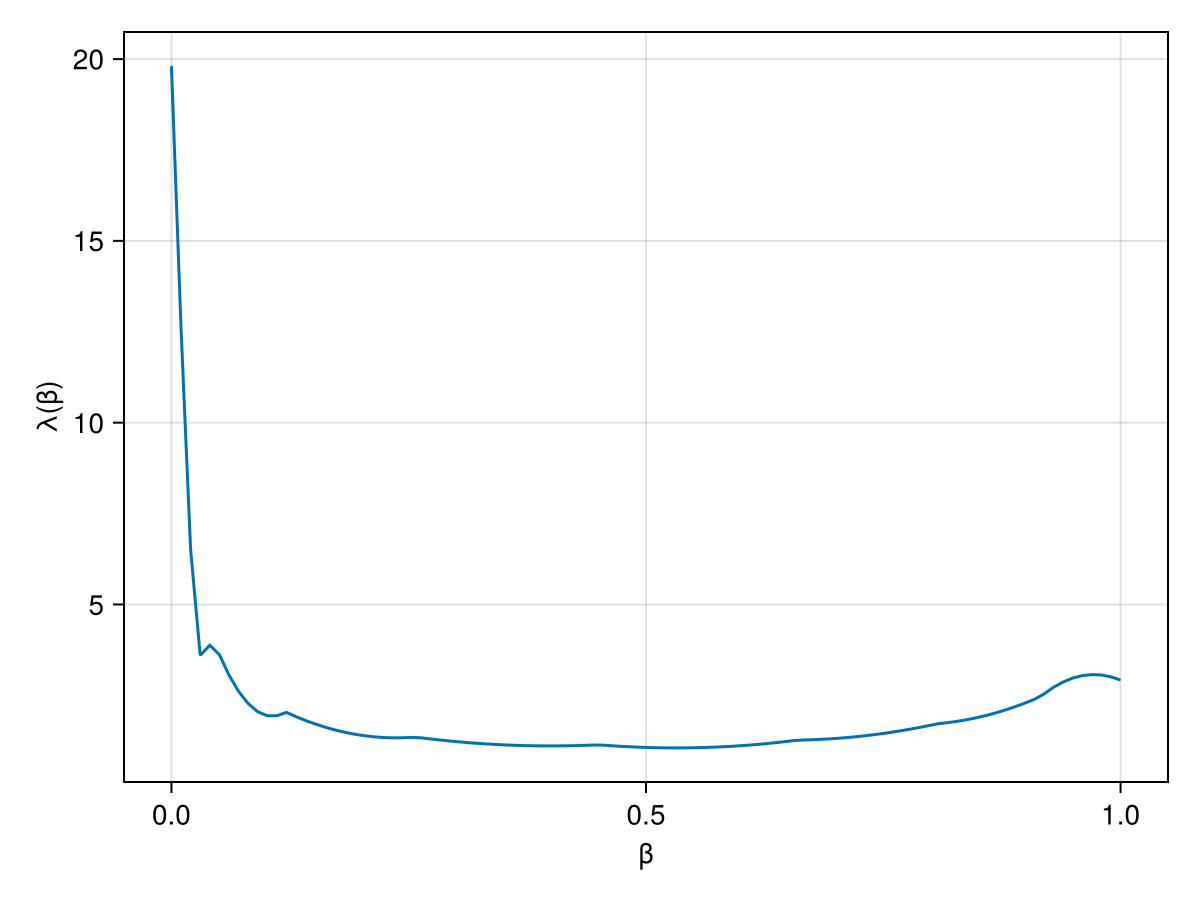

🔍 Full page Local communication barrier
When the global communication barrier is large, many chains may be required to obtain tempered restarts.
The local communication barrier can be used to visualize the cause of a high global communication barrier. For example, if there is a sharp peak close to a reference constructed from the prior, it may be useful to switch to a variational approximation.
🔍 Full page ⏐🔗 Info GCB estimation progress

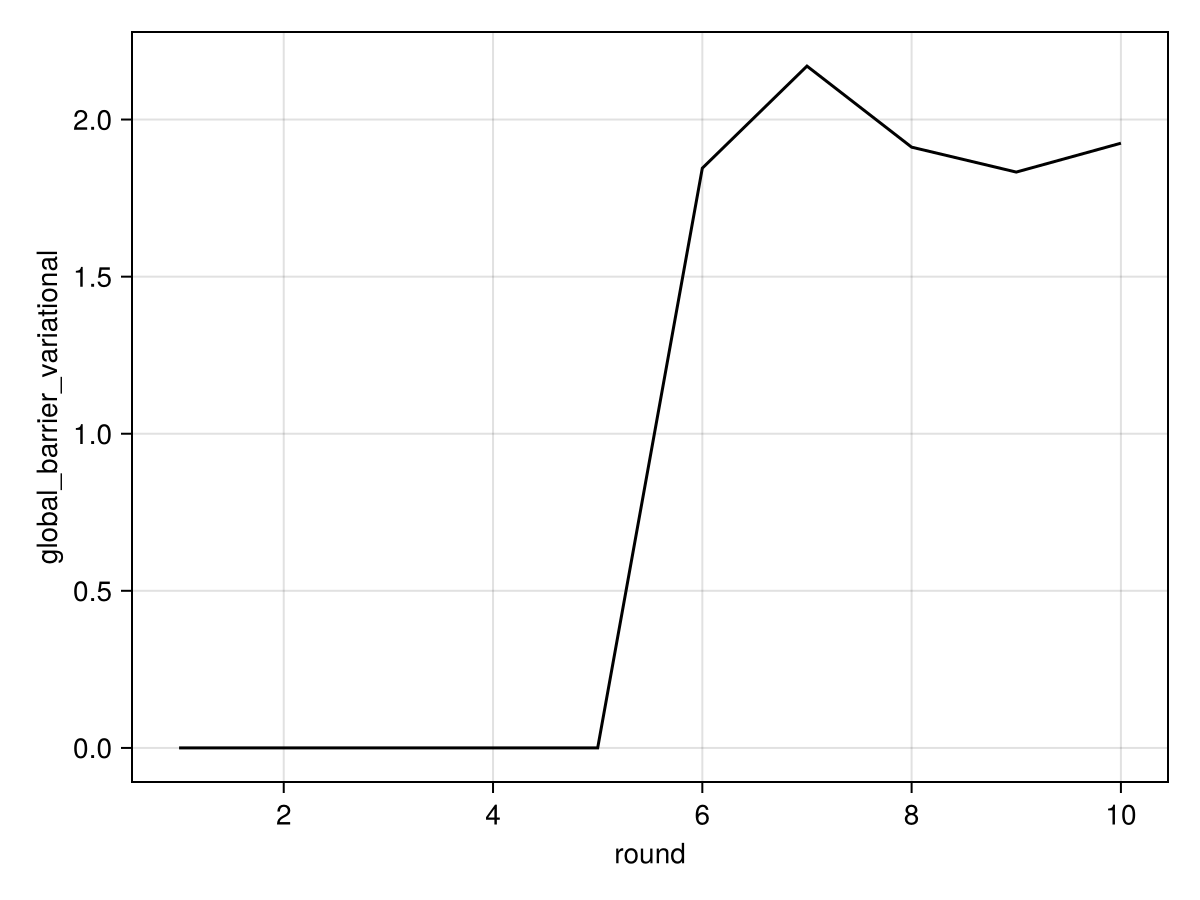

Estimate of the Global Communication Barrier (GCB) as a function of the adaptation round.
The global communication barrier can be used to set the number of chains. The theoretical framework of Syed et al., 2021 yields that under simplifying assumptions, it is optimal to set the number of chains (the argument n_chains in pigeons()) to roughly 2Λ.
Last round estimate: $2.0620808747130686$
🔍 Full page ⏐🔗 Info Evidence estimation progress
Estimate of the log normalization (computed using the stepping stone estimator) as a function of the adaptation round.
Last round estimate: $-31.81526068494555$
🔍 Full page ⏐🔗 Info Round trips
Number of tempered restarts as a function of the adaptation round.
A tempered restart happens when a sample from the reference percolates to the target. When the reference supports iid sampling, tempered restarts can enable large jumps in the state space.
🔍 Full page ⏐🔗 Info Swaps plot
🔍 Full page Pigeons summary
| round | n_scans | n_tempered_restarts | global_barrier | global_barrier_variational | last_round_max_time | last_round_max_allocation | stepping_stone |
|---|---|---|---|---|---|---|---|
| 1 | 2 | 0 | 7.10543e-15 | missing | 0.0453738 | 3.03718e6 | 0.0 |
| 2 | 4 | 0 | 7.10543e-15 | missing | 0.0106608 | 134528.0 | -7.10543e-15 |
| 3 | 8 | 0 | 1.42109e-14 | missing | 0.0260614 | 263328.0 | -4.44089e-15 |
| 4 | 16 | 4 | 8.88178e-15 | missing | 0.053003 | 520560.0 | 2.66454e-15 |
| 5 | 32 | 12 | 1.24345e-14 | missing | 0.093101 | 886176.0 | -2.88658e-15 |
| 6 | 64 | 5 | 1.85553 | missing | 0.301451 | 4.58587e7 | -32.1407 |
| 7 | 128 | 7 | 2.42447 | missing | 0.503082 | 8.46558e7 | -31.7478 |
| 8 | 256 | 26 | 2.06959 | missing | 0.993047 | 1.64869e8 | -31.9503 |
| 9 | 512 | 64 | 1.95528 | missing | 1.9803 | 3.3217e8 | -32.0703 |
| 10 | 1024 | 112 | 2.06208 | missing | 4.01558 | 6.73722e8 | -31.8153 |
Pigeons inputs
| Keys | Values |
|---|---|
| extended_traces | false |
| checked_round | 0 |
| extractor | nothing |
| record | Function[Pigeons.traces, Pigeons.round_trip, Pigeons.log_sum_ratio, Pigeons.timing_extrema, Pigeons.allocation_extrema] |
| multithreaded | false |
| show_report | true |
| n_chains | 10 |
| variational | GaussianReference(Dict{Symbol, Any}(:singleton_variable => [6.142569193483735, 4.401581695295752, 4.198012493743129, 4.2452234858811435, 3.4519178707377494, 3.6300544635987997, 5.63474600360167, 5.051984631378911, 4.103285291064085, 0.6815744289172729]), Dict{Symbol, Any}(:singleton_variable => [5.494351447995669, 4.659658404640144, 4.509829691958422, 4.741696987439093, 4.3420203995399085, 4.998386352589186, 4.4862971725305485, 4.588433039706588, 3.209107568822381, 1.1873061033462964]), 5) |
| explorer | nothing |
| n_chains_variational | 0 |
| target | StanLogPotential(eight_schools_centered_model) |
| n_rounds | 10 |
| exec_folder | nothing |
| reference | nothing |
| checkpoint | false |
| seed | 1 |
Reproducibility
run(`git clone https://github.com/Julia-Tempering/InferenceReport.jl`)
cd("InferenceReport.jl")
run(`git checkout f26f12430f67a2c8c64988c8c8c1d80696a7d7fd`)
using Pkg
Pkg.activate(".")
Pkg.instantiate()
using Pigeons
inputs = Inputs(; target = Pigeons.stan_eight_schools(), variational = GaussianReference(first_tuning_round = 5), n_rounds = 10, record = [traces; round_trip; record_default()])
pt = pigeons(inputs)
